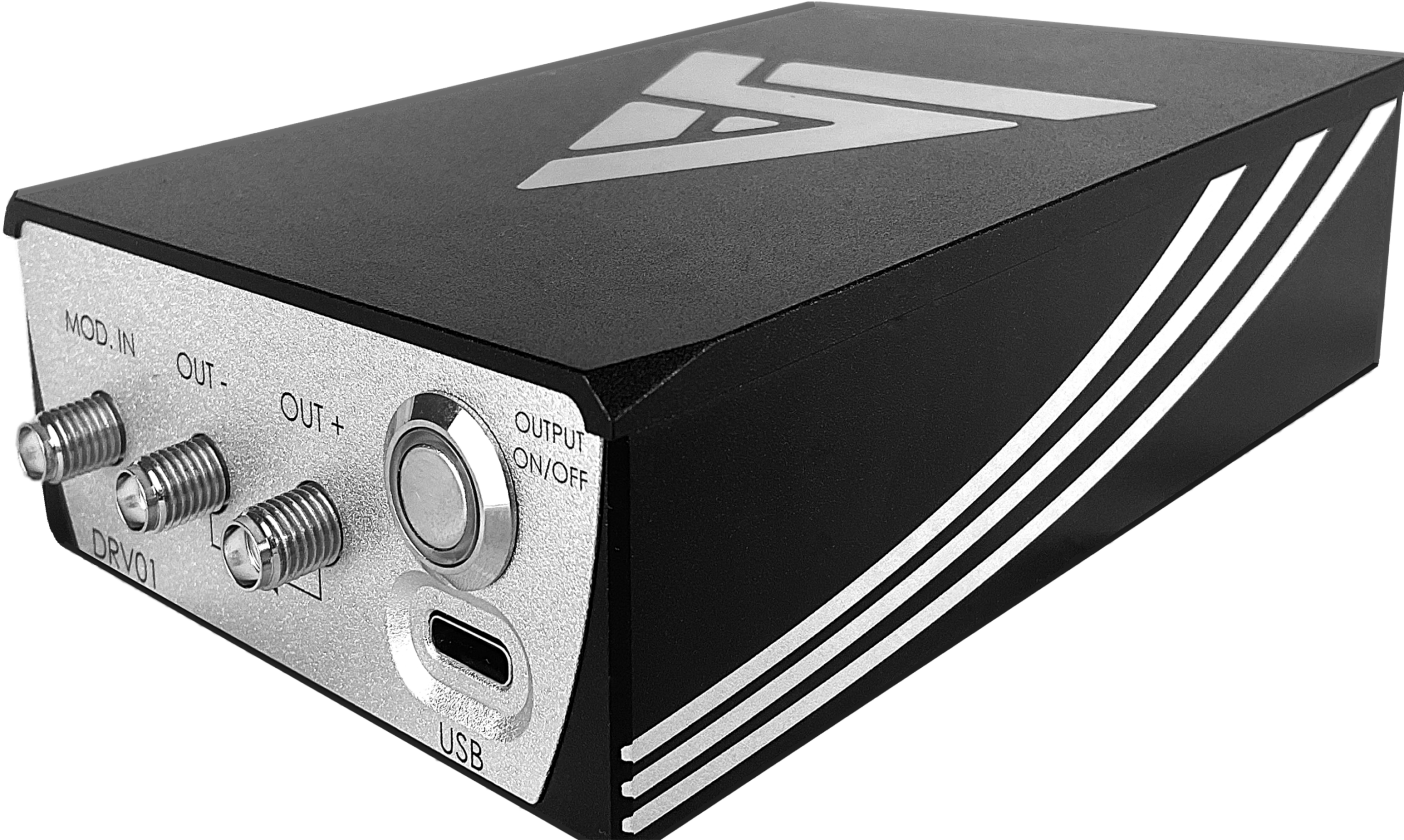

The DRV-01 is an ultralow noise current source. It has been developed to offer the best performances in terms of output current suitable for floating diode lasers. It provides up to 700 mA DC current with fast external modulation. The electronic circuit is integrated in a modern designed aluminum enclosure with standard connectors for an easy use.
YOUR ULTRALOW NOISE SYSTEMS.
SILENTSYS develops, produces, and commercializes solutions in photonics, microwave/THz, and electronics. With patented designs and extensive expertise, the products are compact and user-friendly. SILENTSYS targets emerging industrial and lab needs, especially in quantum technologies, metrology, sensing, and communications, offering cutting-edge performance tailored to modern applications.
DRV-01: Ultralow Noise Current Driver
from €1 750
One of the lowest current noise to drive your lasers: when the driver is no longer the limitation!
SPECIFICATIONS
| Number of outputs | 1 |
| Output current | 0 mA to 700 mA |
| Output current ranges | 50 mA, 230 mA, 450 mA, 700 mA |
| Minimum current noise density | 76 pA/sqrt(Hz) |
| Selectable modulation gain | 3 per each current range |
| Output/input connectors | SMA female |
| 3 dB modulation bandwidth | 40 MHz |

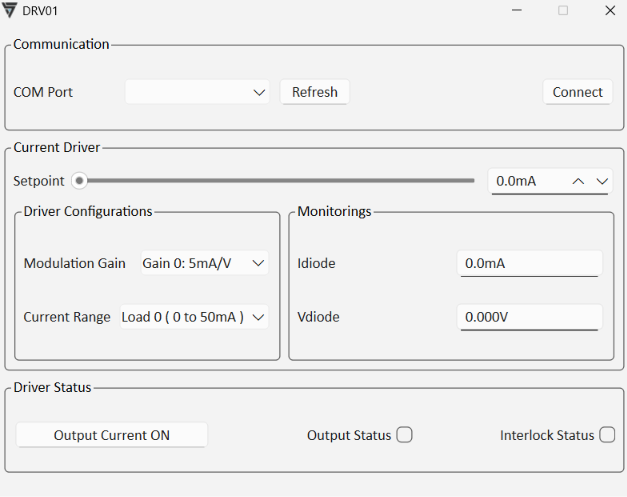

| Interface | USB control with dedicated software |
| Operating temperatures | 0 °C to 40 °C |
| Compatible diodes | Floating diodes |
| Product dimensions | 125 x 80 x 35 mm³ |
| Product weight | approx. 400 g |
| Supply voltage | 9 VDC |
| Price | €1 750 |
| Datasheet |  |
| User guide |  |

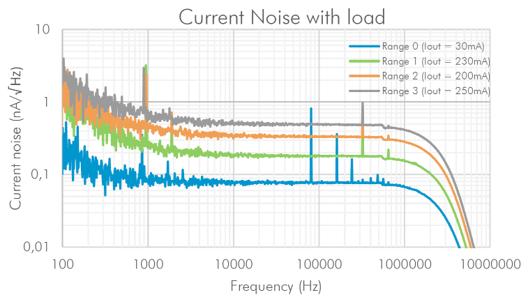

PERFORMANCES
FUNCTIONAL DIAGRAM
The functional diagram is a simple view of what the instrument does. It enables a fast and simple understanding of the internal functionalities in respect to the system inputs and outputs.
DRAWINGS

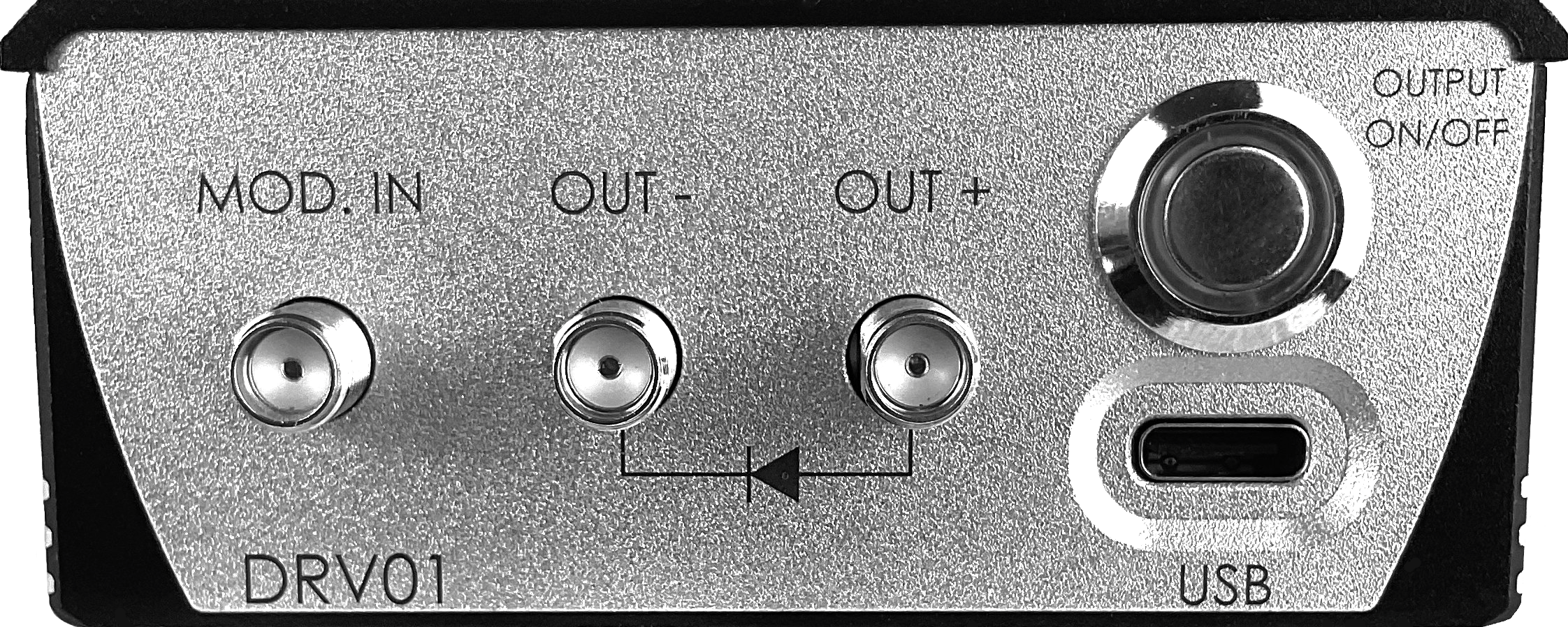

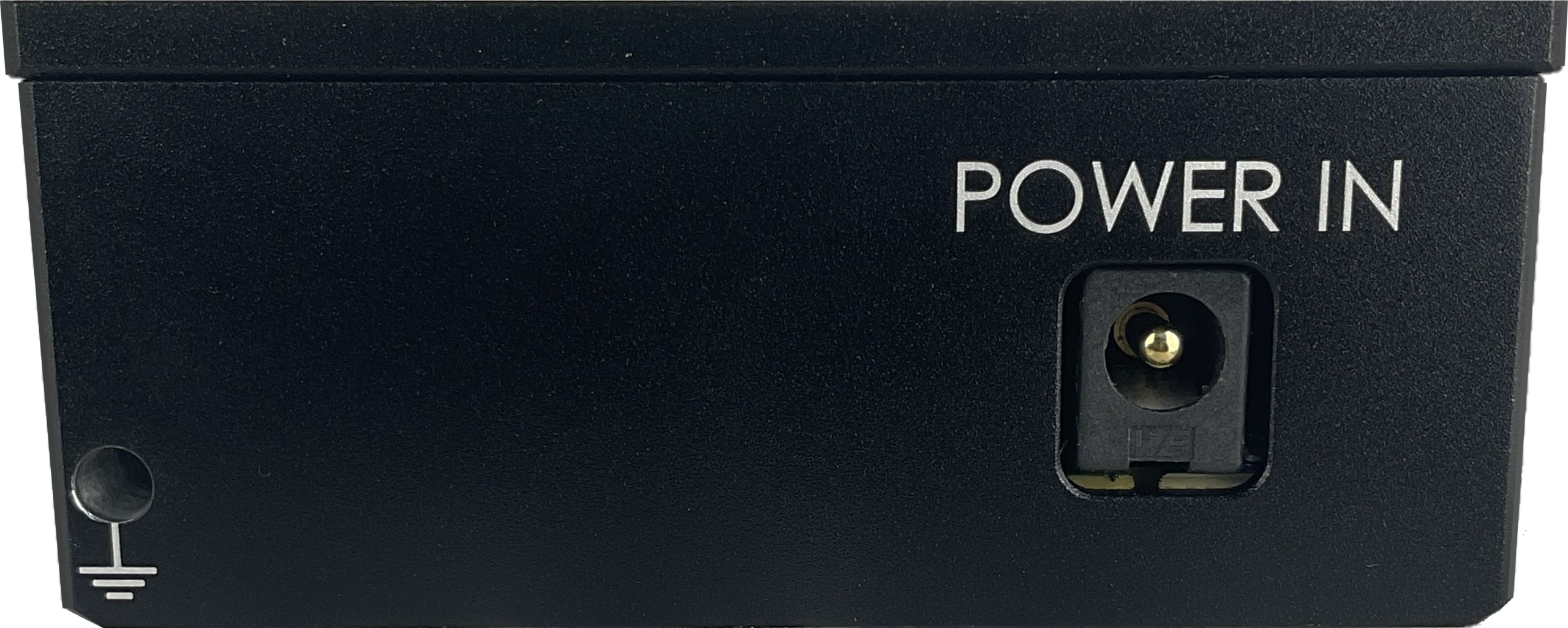

The dimensions of the device are presented here with a simplified view. It also shows the connections from the front and back view of the instrument.
Dimensions are in [mm]
